We have gained immense response in the local as well as the global market for introducing a contemporary way of laminating woven fabric, non woven fabric, paper, plastic, aluminum and hence become prominent as an extrusion coating lamination plant manufacturer, supplier and exporter. As the name signifies, the machine laminates respective substrate by the extrusion technology to impart considerably longer lasting bond. The lamination obtained from our extrusion coating lines is renowned for crystal clear lamination, completely sealed edges, and strong adhesion with no single error.

In this extrusion coating lamination plant, the process is instigated by feeding the polymer resin (PP, LDPE) to the extrusion, where is continuously rotated, heated, melted and pushed toward the T die section. The melted polymer is spread uniformly in the web by means of the T die section, which thereafter is applied to the respective substrate using the pressed roller. The presser roller efficiently presses the polymer web on the substrate in order to develop a strong bond. During the entire operation unwind and rewind rollers are used for processing the substrate, whereas the entire lamination operations in controlled automatically through PLC control, equipped at the end of the machine, which in turns increases the accuracy and productivity of the end user.

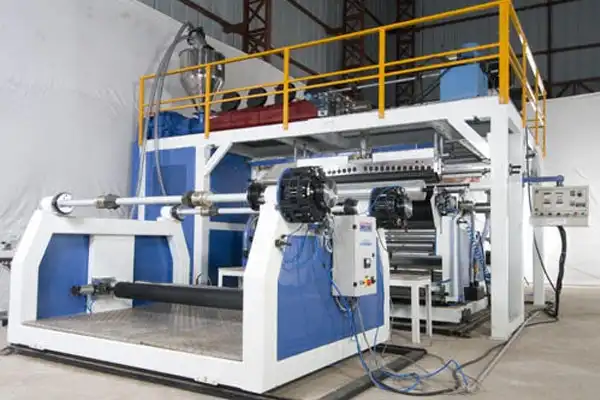

EXTRUSION COATING LAMINATION PLANT

The continuous operations are not a concern for this extrusion coating line, thanks to quality controlled manufacturing processes, helping achieve high grade range that has ability to perform unfailingly even for the larger jobs. Besides that, all the parts (feeder, extruder, T die section, unwind roller, rewind roller, chilling roller, pressure roller, edge trimmer) incorporated in this extrusion coating lines are tested and ascertained for impeccability. All the concerns associated with the lamination are fixed by testing and hence is able to deliver the best quality lamination experience to the end user.

Our Extrusion Coating Lamination Plant Details

MODEL GDLAM T1000 GDLAM T1700 GDLAM T2200 GDLAM T4000
SCREW DIA MM 70 80 80 105
DIE WIDTH MM 1000 1700 1700 4000
MAX COATING WIDTH MM 850 1550 1550 3700
OUT PUT KG/HR 260-280 320-360 320-380 600-700
MAX LINE SPEED MPM 110 110 110 90
COATING THICKNESS MICRON 20-100 20-100 20-100 20-100

We as manufacturer provide this extrusion coating lamination machine in an extensive specification in terms of, dimension, capacity, speed, etc and thereby we are popular in the market. Other than, we are also able to provide custom made extrusion coating line as per your sated specification at the best rates. Whatever type of extrusion coating machine you select, you are going to get supreme results at considerably lower prices, can be used for laminating sugar packets, cement bags, foil pouch, cosmetic packing and all other products that requires to prevent from the dust, gases, water and UV sunlight.

Our Extrusion Coating Lamination Plant Advantages

  • The machine runs unfailingly throughout
  • High quality parts ensure longer life expectancy
  • Meets set industry standards to the farthest
  • High speed lamination process increases productivity
  • Outperforms even for the long runs
  • The sturdy construction ensures vibration free operations
  • Delivers flawless lamination with sealed edges
